Consort 51 DLX
Top of the new Consort range, the Consort 51 DLX has 3-manuals, a comprehensive specification of 51-speaking stops, a 32-note radiating/concave pedal board and many features any organist would expect to find on a modern pipe organ. The traditional cabinet with locking fall are a benefit for churches, but the incredible 8.2 internal surround-sound amplification system also makes the instrument ideal for home or school practice. The organ s available in Dark, Medium and Light Oak wood veneer finishes. Up to 12 channels of external audio can also be added.
£22,500 inc VAT

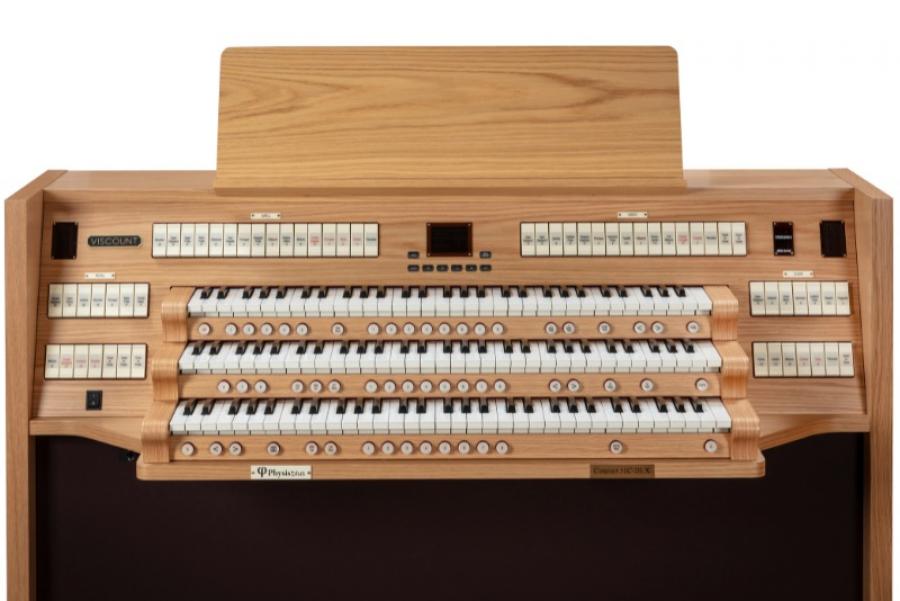

- 3 x 61-note tracker touch keyboards, with velocity sensitive touch for MIDI & orchestral voices
- 32-note radiating/concave pedalboard
- 51 tilt-tab speaking stops and 4 orchestral tabs
- Alternative organ voices on each tab
- English, Baroque, Romantic & Symphonic pipe sets + 4 assignable sets
- 19 alternative temperaments + 4 user programmes
| Pedal |
| Double Diapason32 |
| Open Wood16 |
| Violone16 |
| Bourdon16 |
| Principal8 |
| Bass Flute8 |
| Choral Bass4 |
| MixtureIV |
| Contra Bombarde32 |
| Trombone16 |
| Trumpet8 |
| great to pedal |
| swell to pedal |
| choir to pedal |
| Great |
| Open Diapason I8 |
| Open Diapason II8 |
| Gamba8 |
| Clarabel Flute8 |
| Stopped Diapason8 |
| Principal4 |
| Harmonic Flute4 |
| Twelfth2 2/3 |
| Fifteenth2 |
| Seventeenth 1 3/5 |
| Full MixtureIV |
| Double Trumpet16 |
| Trumpet8 |
| Tremulant |
| swell to great |
| choir to great |
| Swell |
| Bourdon16 |
| Open Diapson8 |
| Open Flute8 |
| Rohr Flute8 |
| Salicional8 |
| Vox Cleleste8 |
| Principal4 |
| Stopped Flute4 |
| Fifteenth2 |
| Sesquialtera II |
| MixtureIV |
| Contra Fagotto16 |
| Cornopean8 |
| Oboe8 |
| Clarion4 |
| Tremulant |
| Choir |
| Open Diapson8 |
| Gedackt8 |
| Unda Maris8 |
| Gemshorn4 |
| Lieblich Flute4 |
| Nazard 2 2/3 |
| Flaagolet2 |
| Tierce1 3/5 |
| Larigot1 1/3 |
| MixtureIII |
| Clarinet8 |
| Tuba8 |
| Tremulant |
| swell to choir |
- Swell, Choir, & Crescendo (alternatively Gt/Ped) expression pedals
- 8 divisional toe pistons to Ped
- Next / Gt to Ped / Sw to Ped / Sw to Gt toe pistons
- 8 General thumb pistons
- 8 Divisional thumb pistons to Sw/Ch/Gt
- Sw to Ch / Sw to Gt / Sw to Ped / Ch to Gt / Ch to Ped / Gt to Ped reverser thumb pistons
- Distinct Gen/Div memory banks
- 99 General & 16 Divisional memories
- Next/Previous thumb pistons (General memories only)
- Auto Pedal assistance thumb piston
- Gt&Ped Combination thumb piston
- 32′ Flue reverser thumb piston
- 32′ Reed reverser thumb piston
- Cymbelstern reverser thumb piston
- 2 independently settable tremulants per division
- Transposer (+/- 6 semitones)
- Ch/Gt manual exchange function
- 145cm (W) x 119cm (H) x 122cm (D) with pedalboard (69cm without pedalboard)
- Weight: 171kg
- Stop-by-stop, note-by-note tonal finishing

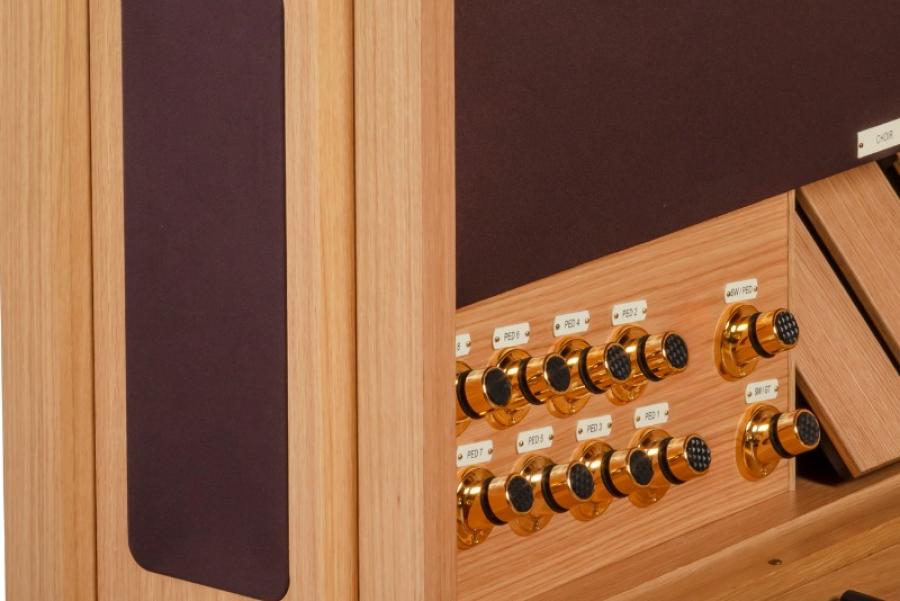

- 14 internal speakers (4 tweeter, 4 mid-range, 2 x 10′ woofer, 2 full-range, 2 mid-high range)
- 10 x 150W per channel amplifier
- 5 band graphic EQ
- 16 reverb types – fully adjustable
- Stereo headphone socket
- 12 programmable external channels
- Audio inputs L/R
- MIDI in/out
- USB type A & B
